Home ProductsAutomatic Door Closer

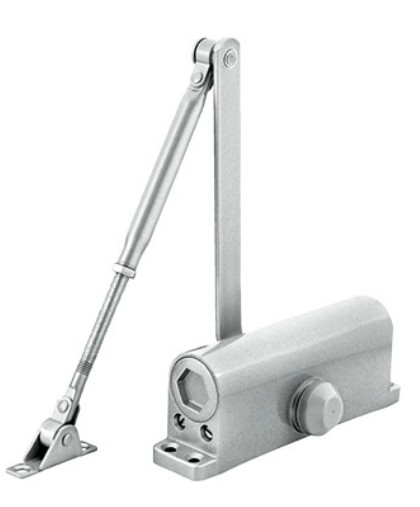

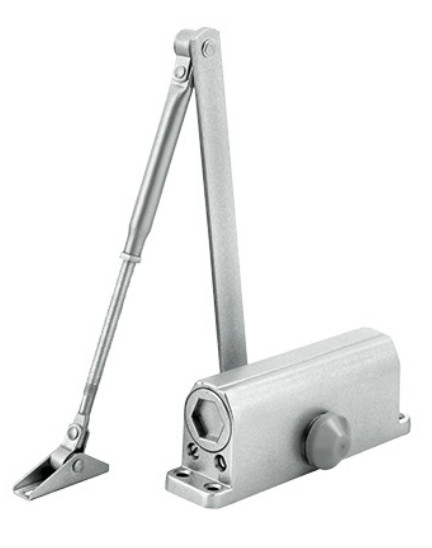

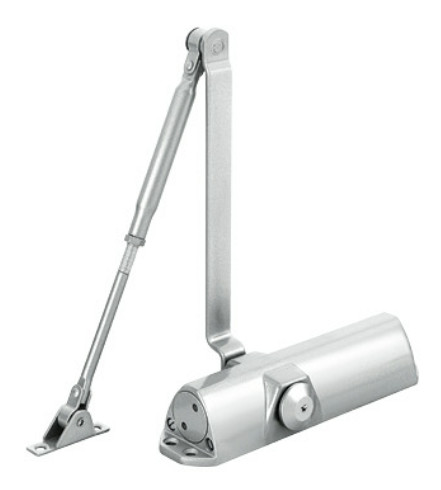

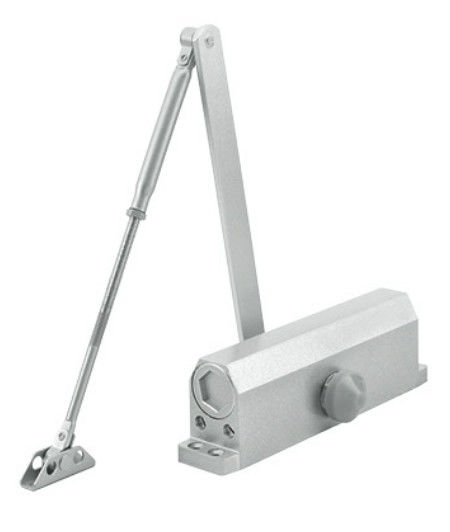

055 Close Bottom Machine Stainless Steel Door Closer For Steel Door

055 Close Bottom Machine Stainless Steel Door Closer For Steel Door

    • 055 Close Bottom Machine Stainless Steel Door Closer For Steel Door
    • 055 Close Bottom Machine Stainless Steel Door Closer For Steel Door
    • 055 Close Bottom Machine Stainless Steel Door Closer For Steel Door
    • 055 Close Bottom Machine Stainless Steel Door Closer For Steel Door
  • 055 Close Bottom Machine Stainless Steel Door Closer For Steel Door

    Product Details:

    Place of Origin: CHINA
    Brand Name: GRH

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 pieces
    Price: Negotiable(very competitive)
    Packaging Details: Each set is packed independently, one for each 500 sets.
    Delivery Time: 20 days to 40 days after receive the deposit.
    Payment Terms: L/C, D/P, T/T at sight.
    Supply Ability: 1000000 pairs per month.
    Contact Now
    Detailed Product Description
    Model1: 091 Model2: 075
    Model3: 063A Model4: 055



    091 Triangle machine 075 Big size square 063A New medlum round 055 Close bottom machine door closer



    091 Triangle machine:



    Model Hole distance Door weight(kg) Door width Application
    091 202*19mm 40-65 950mm All kinds of material metal and plastic steel door



    1. Appropriate weight of door 40-65kg, appropriate width of door 950mm;
    2. With stop function, (90 degrees) positioning, and (180 degrees) without positioning;
    3. Use high-quality O -shaped seal rings to effectively prevent oil spills;
    4. Piston gear is made of high quality carbon steel material and is treated with heat to ensure the service life of the product;
    5. Spring made of high quality spring steel wire ensures the strength of the product to be maintained for a long time'
    6. Use of high-quality aluminum alloy die-casting body, three layers of paint protection, to prevent oxidation of the body;
    7. Suitable temperature: -30-60 degrees.

    075 Big size square:



    Model Hole distance Door weight(kg) Door width Application
    075 229*19mm 80-120 1200mm All kinds of material metal and plastic steel door




    1. Appropriate weight of door 80-120kg, appropriate width of door 1200mm;
    2. With stop function, (90 degrees) positioning, and (180 degrees) without positioning;
    3. Use high-quality O -shaped seal rings to effectively prevent oil spills;
    4. Piston gear is made of high quality carbon steel material and is treated with heat to ensure the service life of the product;
    5. Spring made of high quality spring steel wire ensures the strength of the product to be maintained for a long time'
    6. Use of high-quality aluminum alloy die-casting body, three layers of paint protection, to prevent oxidation of the body;
    7. Suitable temperature: -30-60 degrees.
    8. With needle rooler bearings, products better perfomance.

    063A New medlum round:



    Model Hole distance Door weight(kg) Door width Application
    063A 162*19mm 40-65 950mm All kinds of material metal and plastic steel door




    1. Appropriate weight of door 40-65kg, appropriate width of door 950mm;
    2. With stop function, (90 degrees) positioning, and (180 degrees) without positioning;
    3. Use high-quality O -shaped seal rings to effectively prevent oil spills;
    4. Piston gear is made of high quality carbon steel material and is treated with heat to ensure the service life of the product;
    5. Spring made of high quality spring steel wire ensures the strength of the product to be maintained for a long time'
    6. Use of high-quality aluminum alloy die-casting body, three layers of paint protection, to prevent oxidation of the body;
    7. Suitable temperature: -30-60 degrees.

    055 Close bottom machine:



    Model Hole distance Door weight(kg) Door width Application
    055 132*19mm 25-45 900mm All kinds of material metal and plastic steel door






    1. Appropriate weight of door 25-45kg, appropriate width of door 900mm;
    2. With stop function, (90 degrees) positioning, and (180 degrees) without positioning;
    3. Use high-quality O -shaped seal rings to effectively prevent oil spills;
    4. Piston gear is made of high quality carbon steel material and is treated with heat to ensure the service life of the product;
    5. Spring made of high quality spring steel wire ensures the strength of the product to be maintained for a long time'
    6. Use of high-quality aluminum alloy die-casting body, three layers of paint protection, to prevent oxidation of the body;
    7. Suitable temperature: -30-60 degrees.
