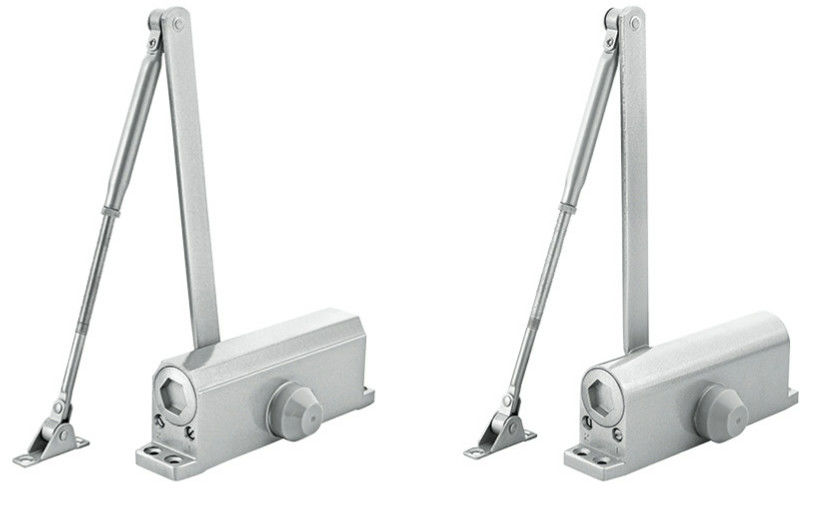

Safety 072 Large Square Automatic Door Closer Hinge With Stop Function

Product Details:

Place of Origin:	CHINA
Brand Name:	GRH

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pieces
Price:	Negotiable（very competitive）
Packaging Details:	Each set is packed independently, one for each 500 sets.
Delivery Time:	20 days to 40 days after receive the deposit
Payment Terms:	L/C, D/P, T/T at sight.
Supply Ability:	1000000 pairs per month

Contact Now

Detailed Product Description

Model1:

072

Model2:

062

Model3:

073

Model4:

073A

High Light:

auto door closer

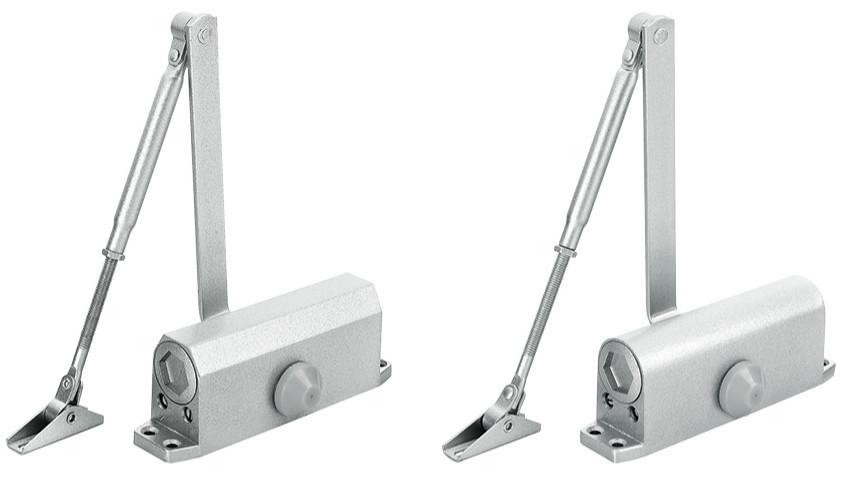

072 Large square 062 Large round 073 New large square 073A New large round door closer

Model	Hole distance	Door weight(kg)	Door width	Application
072	188*19mm	60-85	1050mm	All kinds of material metal and plastic steel door
062

Appropriate weight of door 60-85kg, appropriate width of door 1050mm;
With stop function, (90 degrees) positioning, and (180 degrees) without positioning;
Use high-quality O -shaped seal rings to effectively prevent oil spills;
Piston gear is made of high quality carbon steel material and is treated with heat to ensure the service life of the product;
Spring made of high quality spring steel wire ensures the strength of the product to be maintained for a long time'
Use of high-quality aluminum alloy die-casting body, three layers of paint protection, to prevent oxidation of the body;
Suitable temperature: -30-60 degrees.

Model	Hole distance	Door weight(kg)	Door width	Application
073	188*19MM	60-85	1050MM	All kinds of material metal and plastic steel door
073A

Appropriate weight of door 60-85kg, appropriate width of door 1050mm;
With stop function, (90 degrees) positioning, and (180 degrees) without positioning;
Use high-quality O -shaped seal rings to effectively prevent oil spills;
Piston gear is made of high quality carbon steel material and is treated with heat to ensure the service life of the product;
Spring made of high quality spring steel wire ensures the strength of the product to be maintained for a long time'
Use of high-quality aluminum alloy die-casting body, three layers of paint protection, to prevent oxidation of the body;
Suitable temperature: -30-60 degrees.
