Place of Origin: | CHINA |
---|---|
Brand Name: | GRH |
Model Number: | GRH-F113S,GRH-F118S,GRH-F115S,GRH-F120S |
Minimum Order Quantity: | 1000 pcs |
Price: | Negotiable(very competitive) |
Packaging Details: | 1 piece/poly bag , 1 pair per inner box , 20 pairs per master carton . |
Delivery Time: | 20 days to 50 days after received the deposit. |
Payment Terms: | L/C, D/P, T/T, Western Union |
Supply Ability: | 30000 Piece/Pieces per Month |
Type: | Furniture Lock | Application: | Bathroom, Home Office, Living Room, Bedroom |
---|---|---|---|
Place Of Origin: | Zhejiang,China | Material: | ABS |
Design Style: | Modern | Product Name: | Fingerprint Drawer Lock |
Highlight: | Fingerprint Smart Cabinet Locks Biometric,Cabinet Wardrobe Fingerprint Locks,Keyless Smart Cabinet Locks |
Fingerprint Module |
Semiconductors |
Material |
Zinc-alloy |
Battery |
3*AAA alkaline battery |
Supply voltage |
4.5V |
Static Curren |
≤20uA |
Dynamic Curren |
≤220mA |
Low battery |
3.6V±0.2V |
Working Temperature |
0℃-55℃ |
Working Humidity |
20%-80%RH |
Lock body size |
86X60X22MM |
Color |

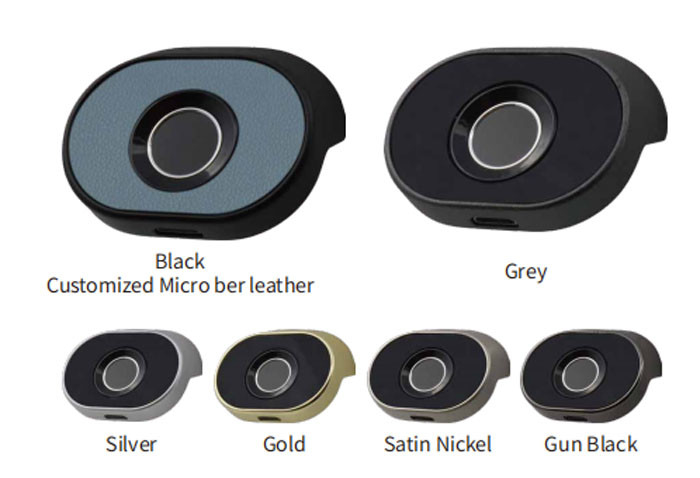

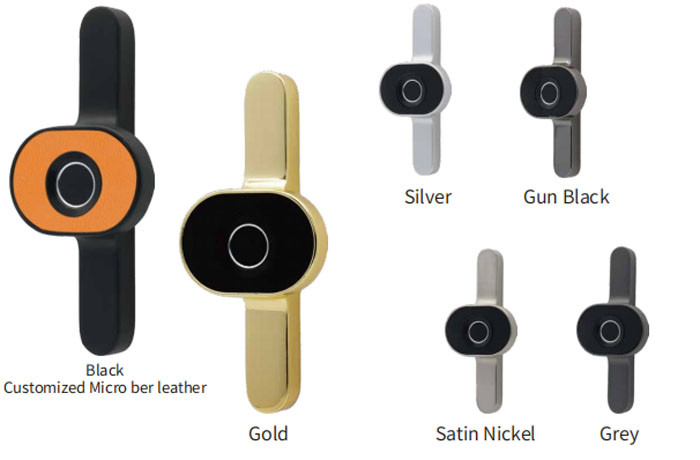

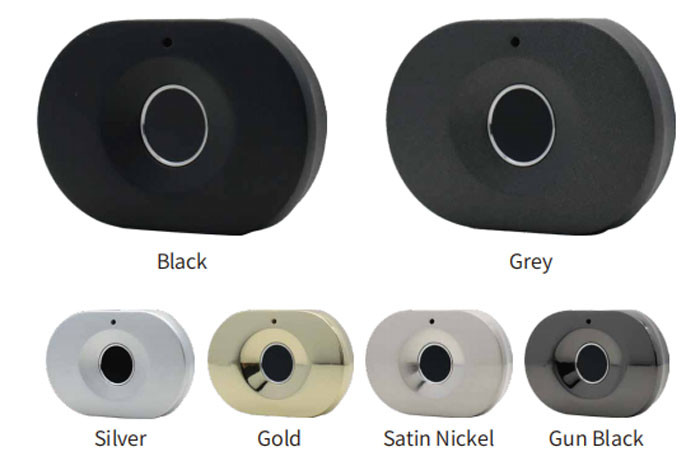

Black, grey, gold, silver |
Features:
How to Use the padlock?
Add admin user:
1. Press the button(the diamond shaped indicator light) for 2s.
2. The led will be blue and turn to flash in green.
3. Then press fingerprint successfully for 10 times, the led will be blue if succeed, red if fail.
4. The registration is finished if the led turns green after 10 times touch.
Delete all users:
1. Press the button for 5s.
2. Press the admin fingerprint when led turns from blue to red.
3. All fingerprints deleted if the led shows green, failed if red.
Note:
1.The first and second registered fingerprints will be set as admin users, and more users need admin user’s authentication.
2. Any fingerprint can unlock it when no fingerprint registered.
3. Led is red when charging and goes out when full charged.
